Partial Dependence Plots (PDPs) help us understand the relationship between a feature (or two features) and the predicted outcome of a model. The key idea is to see how changing the value of a feature affects the prediction, while averaging out the effects of all other features. A PDP can be very useful to unveil the nature of a relationship, for example by letting us see whether it is linear or not.

Consider a case where we fit a model to predict the wholesale electricity price using as input the temperature, the time of the day, and the day of the week. Using PDPs, we would like to explore the specific form of influence that each variable has on the predicted response. To explore that, let’s now generate some data where the Price is a function of temperature, hour, and day. The effect we will generate, and that we expect to find from the PDPs are:

Temperature: the typical banana shape we have seen in previous examples, where prices increase as we move away from mild temperatures. This means that the price will be higher when the temperature is either very low or very high, and lower when the temperature is moderate, forming a U-shaped curve.
Hour: a sinusoidal pattern throughout the day, with two peaks and one trough. We expect higher prices in the morning (between 7 AM and 10 AM) and in the evening (between 6 PM and 10 PM) due to increased demand during these times. The prices will be lower in the afternoon (between 10 AM and 5 PM), reflecting decreased demand.
Day: higher prices on Sundays compared to the rest of the week. This simulates the effect of increased electricity consumption on weekends when people are more likely to be at home.

import numpy as np
import pandas as pd

# Simulate data
np.random.seed(0)
n_samples = 1000
temperature = np.random.uniform(0, 40, n_samples)  # Temperature in Celsius
time_of_day = np.random.uniform(0, 24, n_samples)  # Time of day in hours
day_of_week = np.random.randint(0, 7, n_samples)  # Day of the week (0=Sunday, 6=Saturday)

price = (0.1 * (temperature - 20)**2 +  # Quadratic effect of temperature
         5 * np.sin((time_of_day - 7) * np.pi / 6) * (time_of_day >= 7) * (time_of_day <= 10) +  # Smooth peak between 7 AM and 10 AM
         5 * np.sin((time_of_day - 18) * np.pi / 4) * (time_of_day >= 18) * (time_of_day <= 22) +  # Smooth peak between 6 PM and 10 PM
         -5 * np.sin((time_of_day - 10) * np.pi / 7) * (time_of_day >= 10) * (time_of_day <= 17) +  # Smooth trough between 10 AM and 5 PM
         7 * np.sin((time_of_day) * np.pi / 24) +  # Sinusoidal effect throughout the day
         5 * (day_of_week == 0) +  # Higher prices on Sunday
         np.random.normal(0, 2, n_samples) * 2)  # Noise

# Convert to DataFrame for convenience
data = pd.DataFrame({
    'Temperature': temperature,
    'Hour': time_of_day,
    'Day': day_of_week,
    'Price': price
})

# Display the first few rows
data.head()

Intel MKL WARNING: Support of Intel(R) Streaming SIMD Extensions 4.2 (Intel(R) SSE4.2) enabled only processors has been deprecated. Intel oneAPI Math Kernel Library 2025.0 will require Intel(R) Advanced Vector Extensions (Intel(R) AVX) instructions.
Intel MKL WARNING: Support of Intel(R) Streaming SIMD Extensions 4.2 (Intel(R) SSE4.2) enabled only processors has been deprecated. Intel oneAPI Math Kernel Library 2025.0 will require Intel(R) Advanced Vector Extensions (Intel(R) AVX) instructions.

	Temperature	Hour	Day	Price
0	21.952540	14.229126	3	-2.562450
1	28.607575	0.241529	3	7.237870
2	24.110535	11.419829	3	5.621266
3	21.795327	17.010489	5	6.220472
4	16.946192	1.055410	4	-2.435281

Using the semi-parametric causal discovery methods we discussed in the previous chapters, we might now be able to discover the true causal structure of the data-generating process. However, we will still not be able to see the specific shape of the relationship between a feature (or a set of features) and the predicted outcome. Now, we assume we already have some knowledge on the true causal structure, and want to use some approaches to further characterise the dependency patterns.

Estimation#

Imagine we fitted a model \(\hat{f}\) that predicts the electricity price using the remaining three features as input variables. Let \(h\) represent the hour variable. The partial dependence function \(\hat{f}(h)\) is defined as:

(51)#\[\begin{equation} \hat{f}(h) = \mathbb{E}_{\mathbf{x}}[\hat{f}(h, \mathbf{x})] = \int \hat{f}(h, \mathbf{x}) dP(\mathbf{x}) \end{equation}\]

where:

\(h\) is the feature of interest (e.g., the hour of the day). It can also be computed for a set of features instead of a single one.
\(\mathbf{x}\) is the vector of all other features in the dataset except \(h\).
\(\hat{f}\) is the model, and \(\hat{f}(h, \mathbf{x})\) is the prediction made by the model for given \(h\) and \(\mathbf{x}\) values.
\(\mathbb{E}_{\mathbf{x}}\) denotes the expectation over the marginal distribution of \(\mathbf{x}\).

The partial dependence function shows how the model’s prediction changes when \(h\) changes, keeping the other features constant. Taking the expected value of the model’s prediction over the distribution of \(\mathbf{x}\) effectively averages out the effects of all other features. Indeed, the The integral indicates that we are integrating (or averaging) the model’s predictions over the probability distribution of the features in \(\mathbf{x}\). This integration helps in isolating the effect of \(h\) on the predicted outcome.

In practice, we estimate \(\hat{f}(h)\) using the average prediction over the dataset:

(52)#\[\begin{equation} \hat{f}(h) \approx \frac{1}{n} \sum_{i=1}^n \hat{f}(h, \mathbf{x}_i) \end{equation}\]

where \(n\) is the number of instances in the dataset, and \(\mathbf{x}_i\) is the \(i\)th observation of the covariates. This sum basically calculates the average prediction of the model when \(h\) is fixed at a specific value, and \(\mathbf{x}\) iterates through all the observed values in the dataset. Here is what we would do in practice:

Fix the feature of interest: pick a specific value of the feature \(h\) (e.g., Hour = 8 AM).
Pair it with all other features: for each data point in the dataset, replace the value of the feature \(h\) with the fixed value (e.g., set Hour to 8 AM for all instances), while keeping the other feature values \(\mathbf{x}\) as they are.
Make predictions: use the fitted model to make predictions for all these modified data points.
Average these predictions: calculate the average of these predictions. **This average actually represents the partial dependence value \(\hat{f}(h, \mathbf{x})\).

By iteratively fixing \(h\) at specific values and averaging over all the remaining features, we are actually trying to isolate the influence of changing hours, while keeping the other values constant.

To see this in practice, let’s manually implement the PDP for the “Hour” feature. This will illustrate the steps involved in calculating and plotting a PDP. Here is a simple implementation of a function to estimate the partial dependence function:

def calculate_pdp(feature_name, feature_values, X, model):
    pdp_values = []
    for value in feature_values: # Step 1
        X_temp = X.copy()
        X_temp[feature_name] = value # Step 2
        predictions = model.predict(X_temp) # Step 3
        pdp_values.append(np.mean(predictions))  # Step 4
    return pdp_values

The function calculate_pdp computes the PDP values for a specified feature in a dataset using a given machine learning model. PDPs help in understanding the relationship between a feature and the predicted outcome by showing how the predictions change as the feature values are varied, while keeping all other features constant.

The main steps of the algorithm are:

Initialisation and iteration over feature values: Initialise an empty list to store the PDP values and iterate over each value in the specified range of feature values.
Modify feature values: for each value in the feature’s range, create a temporary copy of the dataset and set the feature’s value in the temporary dataset to the current value from the iteration.
Predict outcomes: use the machine learning model to make predictions based on the modified dataset.
Compute and store PDP values: calculate the mean of the predictions for the modified dataset and append this mean prediction to the list of PDP values.
Return PDP values: after iterating over all feature values, return the list of PDP values.

Let’s now apply it to a random forest regression model fitted to the data we generated before:

import matplotlib.pyplot as plt
from sklearn.ensemble import RandomForestRegressor

# Split data into features and target
x = data[['Temperature', 'Hour', 'Day']]
y = data['Price']

# Train a Random Forest Regressor
rf = RandomForestRegressor(n_estimators=10, random_state=0)
rf.fit(x, y)

# Calculate PDP for the "Hour" feature
hour_values = np.linspace(0, 24, 48)  # Range of hour values to evaluate
pdp_hour = calculate_pdp(feature_name='Hour', feature_values=hour_values, X=x, model=rf)

# Plot the manually calculated PDP
plt.figure(figsize=(5, 5))
plt.plot(hour_values, pdp_hour, color='k', linewidth=2)
plt.xlabel('Hour')
plt.ylabel('Predicted price')
plt.show()

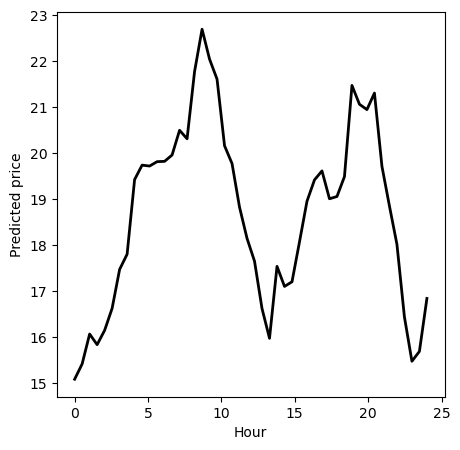

../_images/b871ed8252995853efc71d6e23b84044ea40d60428310b84eb7bf3daa65dc98d.png

Bootstrapping#

We can see how the PDP shows the pattern we expected, as the time of the day affects the price through the peak morning and evening hours. Now, we can apply the function we implemented to the remaining features too. To obtain more reliable estimates, we can repeat the procedure many times, and plot the mean dependence lines, along with some Bootstrap confidence intervals.

# Define the range of values for each feature
temperature_values = np.linspace(0, 35, 70)
hour_values = np.linspace(0, 24, 48)
day_values = np.arange(7)

# Calculate PDPs with bootstrapping
n_bootstraps = 100
pdp_temperature_bootstraps = []
pdp_hour_bootstraps = []
pdp_day_bootstraps = []

for _ in range(n_bootstraps):
    # Bootstrap sample
    indices = np.random.choice(range(n_samples), size=n_samples, replace=True)
    x_bootstrap = x.iloc[indices]
    y_bootstrap = y.iloc[indices]

    # Train model on bootstrap sample
    model_bootstrap = RandomForestRegressor(n_estimators=10, random_state=0)
    model_bootstrap.fit(x_bootstrap, y_bootstrap)

    # Calculate PDPs for each feature
    pdp_temperature = calculate_pdp('Temperature', temperature_values, x, model_bootstrap)
    pdp_hour = calculate_pdp('Hour', hour_values, x, model_bootstrap)
    pdp_day = calculate_pdp('Day', day_values, x, model_bootstrap)

    pdp_temperature_bootstraps.append(pdp_temperature)
    pdp_hour_bootstraps.append(pdp_hour)
    pdp_day_bootstraps.append(pdp_day)

We basically repeated the estimation procedure 100 times. Now, we can use a basic approach and simply take the empirical 2.5% and 97.5% percentiles to obtain a 95% confidence interval for the partial dependence functions.

pdp_temperature_bootstraps = np.array(pdp_temperature_bootstraps)
pdp_hour_bootstraps = np.array(pdp_hour_bootstraps)
pdp_day_bootstraps = np.array(pdp_day_bootstraps)

# Compute mean and confidence intervals
mean_pdp_temperature = np.mean(pdp_temperature_bootstraps, axis=0)
mean_pdp_hour = np.mean(pdp_hour_bootstraps, axis=0)
mean_pdp_day = np.mean(pdp_day_bootstraps, axis=0)
ci_temperature = np.percentile(pdp_temperature_bootstraps, [2.5, 97.5], axis=0)
ci_hour = np.percentile(pdp_hour_bootstraps, [2.5, 97.5], axis=0)
ci_day = np.percentile(pdp_day_bootstraps, [2.5, 97.5], axis=0)

PDP for One Feature#

Let’s now plot the result!

# Plot PDPs with confidence intervals
fig, ax = plt.subplots(1, 3, figsize=(18, 6))

fontsize = 18  # Set the font size for all labels

# Temperature
ax[0].plot(temperature_values, mean_pdp_temperature, label='Partial Dependence', color='k', linewidth=2)
ax[0].fill_between(temperature_values, ci_temperature[0], ci_temperature[1], color='c', alpha=0.2)
ax[0].set_xlabel('Temperature', fontsize=fontsize)
ax[0].set_ylabel('Predicted Price', fontsize=fontsize)
ax[0].tick_params(axis='both', which='major', labelsize=fontsize)

# Hour
ax[1].plot(hour_values, mean_pdp_hour, label='Partial Dependence', color='k', linewidth=2)
ax[1].fill_between(hour_values, ci_hour[0], ci_hour[1], color='m', alpha=0.2)
ax[1].set_xlabel('Hour', fontsize=fontsize)
ax[1].set_ylabel('Predicted Price', fontsize=fontsize)
ax[1].tick_params(axis='both', which='major', labelsize=fontsize)

# Day
ax[2].plot(day_values, mean_pdp_day, label='Partial Dependence', color='k', linewidth=2)
ax[2].fill_between(day_values, ci_day[0], ci_day[1], color='r', alpha=0.2)
ax[2].set_xlabel('Day of Week', fontsize=fontsize)
ax[2].set_ylabel('Predicted Price', fontsize=fontsize)
ax[2].tick_params(axis='both', which='major', labelsize=fontsize)

plt.tight_layout()
plt.show()

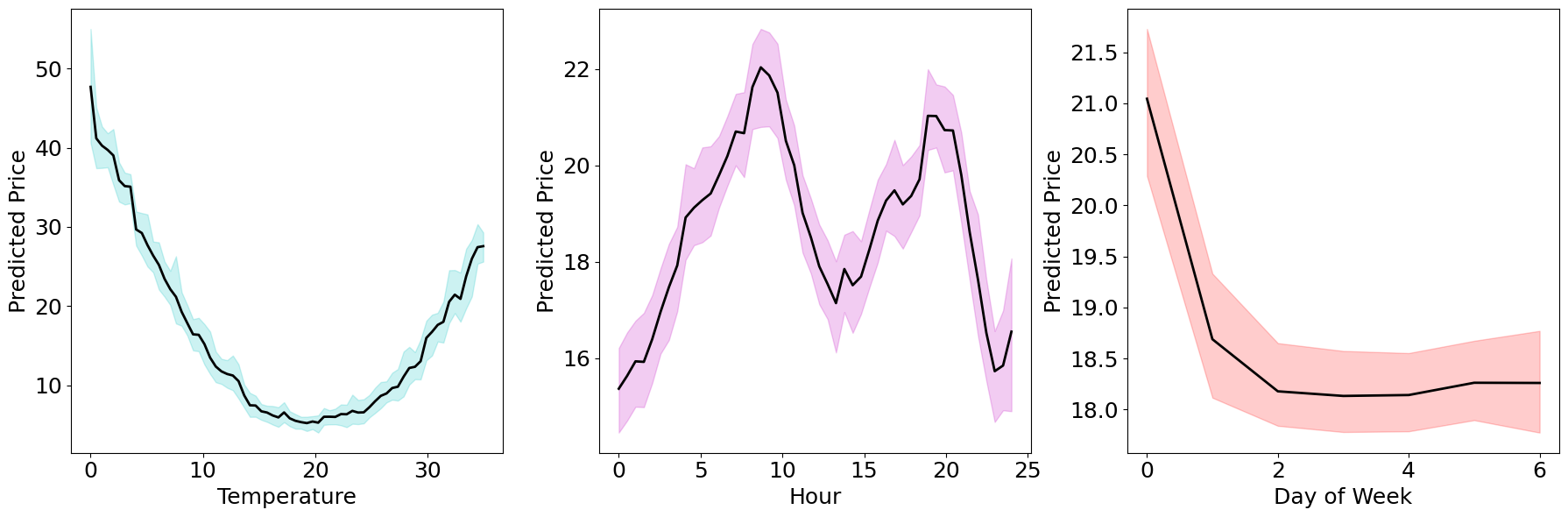

../_images/c33a4ab2443107578bb8c1ba0f6330c2ae2d08eeab629a928d72138ad1bb3d72.png

PDP for Two Features#

Finally, we can also fix the level of two variables, and average over the remaining ones, to see the combined effect on the predicted response. In this case, we can see the results in the form of contour plots. Here is a simple extension of the previous function, to compute PDP for two variables:

def calculate_pdp_two_features(feature_names, feature_values1, feature_values2, X, model):
    pdp_values = np.zeros((len(feature_values1), len(feature_values2)))
    for i, value1 in enumerate(feature_values1):
        for j, value2 in enumerate(feature_values2):
            X_temp = X.copy()
            X_temp[feature_names[0]] = value1
            X_temp[feature_names[1]] = value2
            predictions = model.predict(X_temp)
            pdp_values[i, j] = np.mean(predictions)
    return pdp_values

# Calculate PDPs for the feature combinations
pdp_temperature_hour = calculate_pdp_two_features(['Temperature', 'Hour'], temperature_values, hour_values, x, rf)
pdp_temperature_day = calculate_pdp_two_features(['Temperature', 'Day'], temperature_values, day_values, x, rf)
pdp_hour_day = calculate_pdp_two_features(['Hour', 'Day'], hour_values, day_values, x, rf)

# Plot the PDPs as contour plots
fig, ax = plt.subplots(1, 3, figsize=(18, 6), dpi=100)

# Temperature and Hour
contour1 = ax[0].contourf(temperature_values, hour_values, pdp_temperature_hour.T, cmap='magma', levels=20)
fig.colorbar(contour1, ax=ax[0])
ax[0].set_xlabel('Temperature', fontsize=fontsize)
ax[0].set_ylabel('Hour', fontsize=fontsize)
ax[0].tick_params(axis='both', which='major', labelsize=fontsize)

# Temperature and Day
contour2 = ax[1].contourf(temperature_values, day_values, pdp_temperature_day.T, cmap='magma', levels=20)
fig.colorbar(contour2, ax=ax[1])
ax[1].set_xlabel('Temperature', fontsize=fontsize)
ax[1].set_ylabel('Day', fontsize=fontsize)
ax[1].tick_params(axis='both', which='major', labelsize=fontsize)

# Hour and Day
contour3 = ax[2].contourf(hour_values, day_values, pdp_hour_day.T, cmap='magma', levels=20)
fig.colorbar(contour3, ax=ax[2])
ax[2].set_xlabel('Hour', fontsize=fontsize)
ax[2].set_ylabel('Day', fontsize=fontsize)
ax[2].tick_params(axis='both', which='major', labelsize=fontsize)

plt.tight_layout()
plt.show()

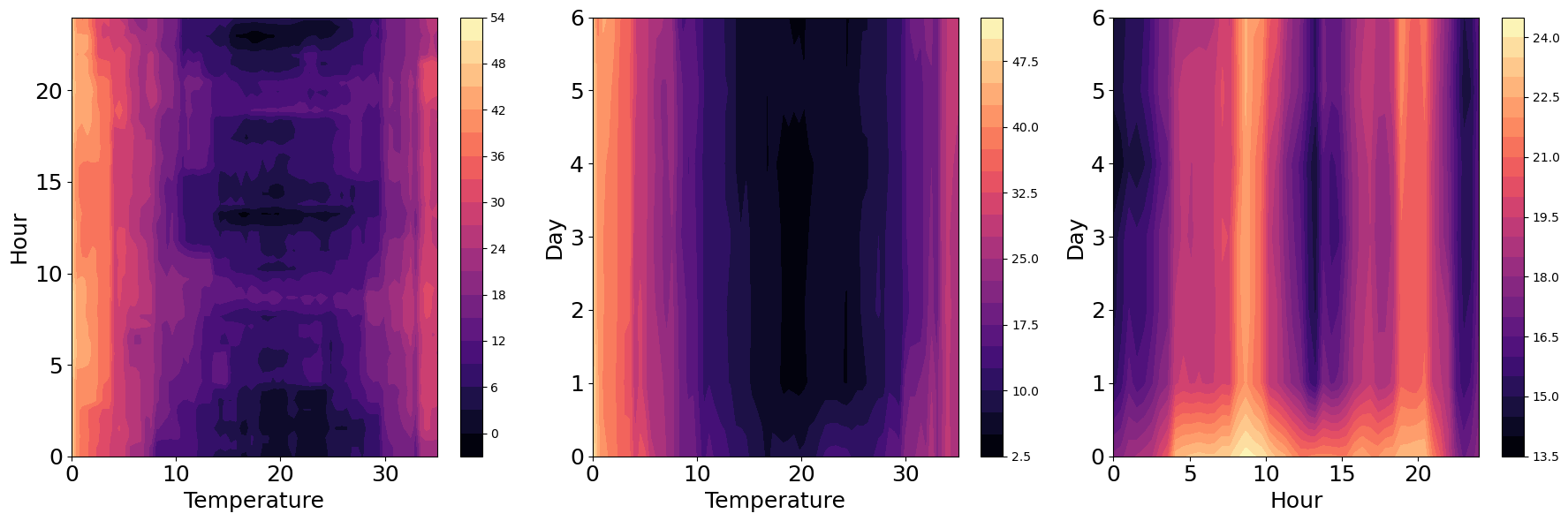

../_images/e42adaed7a684a0b206cba95a7d82ed2d32bdbed382a588454f844e891a37980.png
